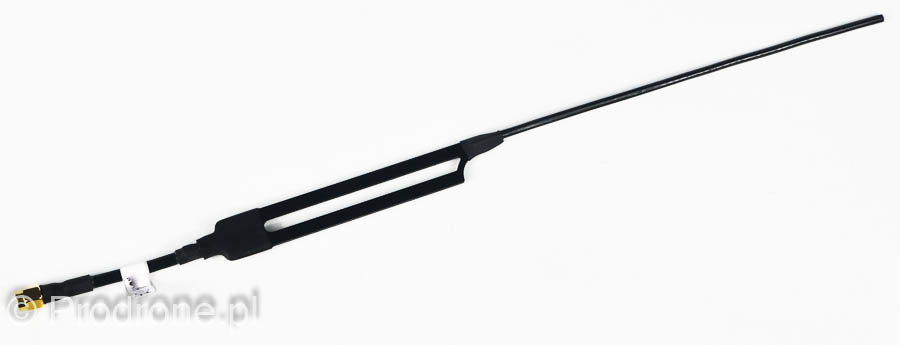

Looking for a high-performance, durable antenna for long-range FPV, LoRa, Meshtastic, or ELRS systems? Our Hybrid J-Pole Antenna is a modern take on a classic design—optimized for 868 MHz (or 915 MHz) applications where reliability and signal integrity matter.
Whether you’re flying ExpressLRS-equipped drones, setting up a Meshtastic mesh network, or deploying LoRa-based IoT devices, this antenna delivers omnidirectional coverage, excellent gain (~2.5 dBi), and rugged durability—making it a top Bardpole alternative.
Why Choose a J-Pole Antenna?
The J-Pole is a time-tested design that outperforms many simple whip antennas. Here’s why it’s ideal for long-range FPV, telemetry, and LoRa communications:
✔ Self-Matching Impedance – No need for extra baluns; the quarter-wave stub naturally matches the 50 Ω impedance for maximum power transfer.
✔ True Omnidirectional Radiation – Unlike directional antennas, the J-Pole provides consistent signal coverage in all horizontal directions, perfect for moving drones or ground stations.
✔ Wide Bandwidth – Maintains a VSWR under 1.5:1 across 20+ MHz, handling frequency drift without retuning.
✔ No Ground Plane Required – Works flawlessly on drones, handheld radios, or rooftops without detuning issues.
Built for Real-World Use: Rugged & Reliable
We’ve taken the classic J-Pole and made it tougher and more versatile for modern RF applications:
- Flexible yet Durable Radiator – Made from PVC-coated spring steel that bends but won’t break.
- Precision-Tuned Stub – FR4 PCB with optimized trace geometry for peak efficiency at 868/915 MHz.
- Soldered SMA-F Connector – No cheap crimped connections—just solid, low-loss RF performance.
- Ultra-Lightweight (12–14g) – Perfect for FPV drones, portable Meshtastic nodes, or backpack setups.
Each antenna is hand-tested with a VNA to ensure optimal tuning before shipping.
Key Specs:
| Parameter | Value |
|---|---|
| Frequency Range | 868 MHz ±10 MHz (or 915 MHz) |
| Bandwidth | >20 MHz (RL < -13 dB) |
| VSWR | <1.2 @ 868 MHz |
| Gain | ~2.5 dBi |
| Polarization | Vertical |
| Connector | SMA-F (other options available) |
Versatile Configurations for Any Setup
- Ultra-Short (4cm stub) – Fits tight spaces like drone stacks or small telemetry modules.
- Short (6cm stub) – Reinforced for UAVs and mobile applications.
- Long (1m RG316D cable) – Ideal for fixed stations, gateways, or ground setups.
Hybrid J-Pole vs. Bardpole: Which is Better?
The TrueRC Bardpole is a great antenna, but our Hybrid J-Pole offers some key advantages:
✅ Individually Tuned – No batch inconsistencies; each unit is VNA-verified.
✅ More Customization – Choose your cable length and connector type.
✅ Comparable (or Better) RF Performance – Optimized for long-range FPV, ELRS, and LoRa.
Who Should Use This Antenna?
- FPV Pilots – Boost your ExpressLRS (ELRS) control link for long-range flights.
- LoRa & Meshtastic Users – Extend your mesh network range with a high-efficiency antenna.
- Search & Rescue Teams – Reliable signal for tracking and emergency communications.
- HAM Radio Operators – Experiment with 868/915 MHz bands for digital modes.
- Industrial IoT Deployments – Rugged enough for harsh environments.
Final Verdict: A Must-Have for Serious RF Users
If you need a no-compromise antenna for 868/915 MHz applications, the Hybrid J-Pole is a top-tier choice. It combines proven RF design with modern durability, making it a better Bardpole alternative for FPV, LoRa, Meshtastic, and ELRS systems.
Upgrade your signal today—experience the difference a well-tuned J-Pole can make!
