At Prodrone.pl, we specialize in high-performance antennas for ExpressLRS (ELRS) systems across all frequency bands. Whether you’re a racer needing 2.4GHz responsiveness or a long-range pilot using 868/900/915MHz, choosing the right antenna is crucial for optimal performance.
Why Your ELRS Antenna Choice Matters
Modern ELRS systems offer incredible range and latency, but their performance depends heavily on your antenna selection. The right antenna:
✔ Maximizes signal strength and reliability
✔ Reduces packet loss for smoother control
✔ Extends your operational range
✔ Survives crashes and harsh conditions
In-Depth Look at Moxon Antennas
What Makes Moxon Antennas Special?
Moxon antennas (a type of Yagi-Uda variant) offer unique advantages for FPV pilots:
- Directional Gain (5-6dBi) – Focuses signal in one direction while maintaining wide coverage
- Compact Size – Much smaller than traditional Yagi antennas
- Excellent Front-to-Back Ratio – Reduces interference from behind
- 250°+ Coverage When Mounted Vertically – Provides wide-angle reception while maintaining directionality
Moxon Radiation Pattern
When mounted vertically:
- Primary lobe covers ~250° horizontally
- Reduced sensitivity directly behind antenna
- Excellent elevation coverage (±45° from horizontal)
This makes them ideal for:
- Mid-range FPV flying (1-5km)
- Situations where directional gain is needed but full omnidirectional isn’t necessary
- Reducing multipath interference in urban environments
Complete ELRS Antenna Selection at ProDrone.pl
1. 2.4GHz ELRS Antennas (2390-2490MHz)
Best for: Racing, freestyle, high refresh rates (500Hz+)
Available Options:

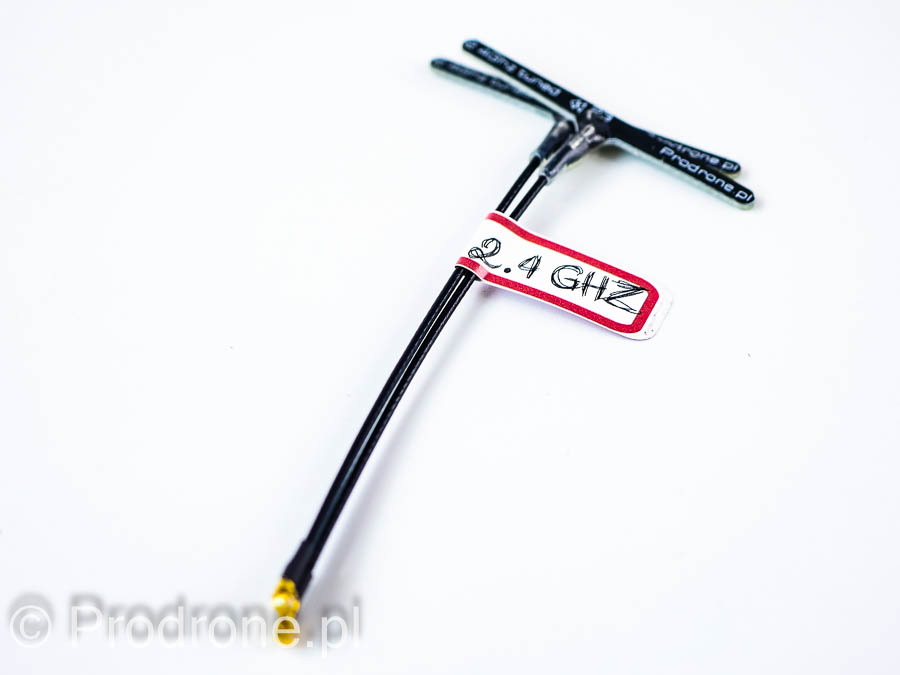

- 2.4GHz Dipole Antenna
- IPEX/U.FL, SMA, and RP-SMA versions
- Ultra-lightweight (1-2g)
- Omnidirectional pattern
- Crash-resistant design
- 2.4GHz Moxon Antenna
- 5dBi directional gain
- Only 30% larger than dipole but significantly better range
- Perfect for racers who need extra punch through gates
- 250° coverage when mounted vertically
2. 868/900/915MHz ELRS Antennas (Long-Range)
Best for: Long-range flights, penetration through obstacles
Available Options:

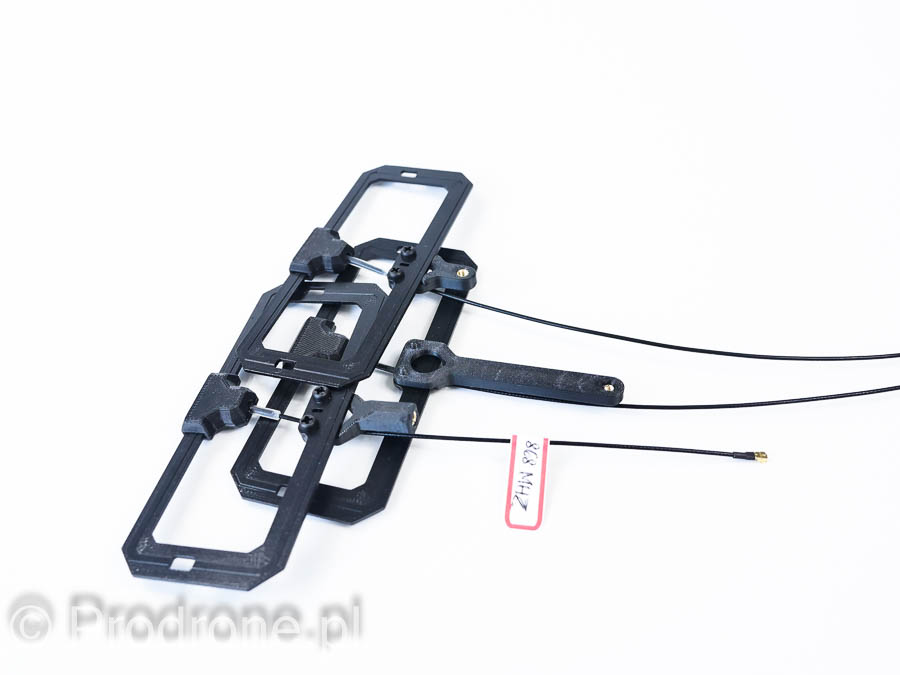

- 868MHz Moxon Antenna
- Optimized for EU 868MHz ELRS
- 6dBi directional gain
- Excellent for mountain surfing (10-20km range)
- Weather-resistant construction

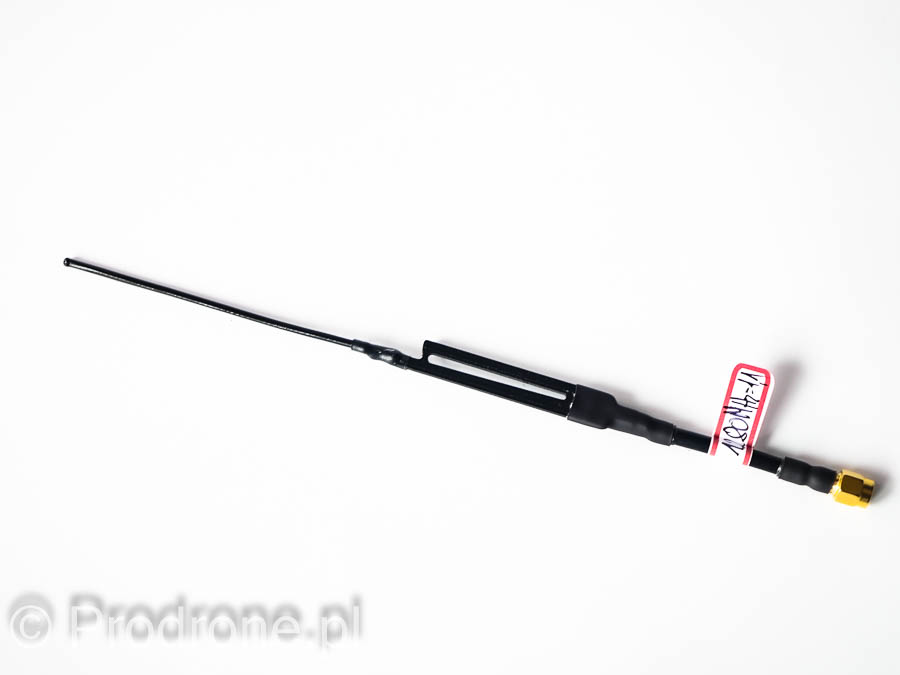

- 915MHz J-Pole Antenna
- Omnidirectional 2.5dBi gain
- US/AU 900/915MHz compatible
- Durable
- Ideal for general long-range use
Antenna Selection Guide
| Use Case | Recommended Antenna | Frequency |
|---|---|---|
| Indoor/Whoop Racing | 2.4GHz Dipole | 2.4GHz |
| Outdoor Racing | 2.4GHz Moxon | 2.4GHz |
| Freestyle | 2.4GHz Moxon | 2.4GHz |
| EU Long-Range | 868MHz Moxon | 868MHz |
| US/AU Long-Range | 915MHz J-Pole | 900/915MHz |
Advanced Installation Tips
Moxon Antenna Mounting Guide
For optimal performance:
- Vertical Orientation – Maximizes the 250° coverage pattern
- Clear of Carbon Fiber – Mount at least 5cm away from CF frames
- TX Antenna Positioning – Point the flat side toward your flight area
- RX Antenna Placement – Best at 90° to TX antenna for diversity
Maintenance Tips
- Regularly check connectors for damage
- Keep antennas clean from dirt and moisture
- Store in anti-static bags when not in use
- Avoid sharp bends in coax cables
Why Buy From ProDrone.pl?
✔ Hand-tested for optimal VSWR (<1.5)
✔ Real-world FPV proven designs
✔ Competitive pricing
✔ Fast EU shipping
✔ Expert technical support
Shop Now
🔗 2.4GHz Antennas Collection
🔗 868/900MHz Antennas Collection
Have special requirements? Contact our antenna experts for custom solutions!
